How to install Gentoo using a Ubuntu 10.04 Live CD

This blog post will show you how to use a Ubuntu 10.04 Live CD to install Gentoo. You can also easily adapt this guide to work with other Live distributions or installed distributions.

Important Rule:

For a Gentoo (32-bit) install, use a Ubuntu 10.04 (32-bit) Live CD
For a Gentoo (64-bit) install, use a Ubuntu 10.04 (64-bit) Live CD

You may wish to refer to the Gentoo Handbook throughout,

Gentoo (32-bit) -
Gentoo (64-bit) -

Once you have successfully chrooted into your Gentoo system, the fact that Ubuntu was used becomes irrelevant. I therefore see no point in reiterating the Gentoo Handbook after this stage.

However, when you exit the chrooted environment you return to Ubuntu. As a result I have updated step 10.d from the Gentoo Handbook to reflect this.

Please also bare in mind Gentoo is a very customizable platform, certain choices I have made may not suit everyone or you may have your own preferences.

For example, the Gentoo Handbook suggests a separate /boot partition, I will not be doing this.

This guide also assumes you wish to install Gentoo 64-bit, 32-bit users must modify steps accordingly.


Boot from the Ubuntu 10.04 Live CD and make sure you have internet access.

Prepare your Hard Disk

Use Gparted to prepare your hard disk for Gentoo.

I will be formatting my 465.76GB (aka 500GB) disk drive /dev/sda to the following layout,

Click on the picture for a bigger view

As can be seen from the screenshot, the partition setup is the following,

/dev/sda1 formatted to ext4 with 58.59GB ---> This will be my /root partition
/dev/sda2 formatted to ext4 with 403.17GB ---> Intended /home partition
/dev/sda3 as the swap partition with 4096MB

Once Gparted has created the partitions, right click on the swap partition and select 'swapon' from the context menu.

Use Gparted to activate the swap

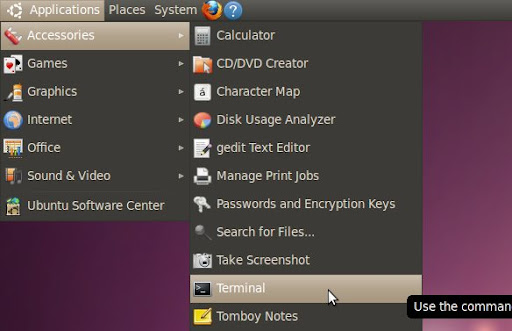

Close Gparted and open a terminal.

Use the terminal to type the commands presented below.

Mounting your /root partition

sudo mkdir /mnt/gentoo
sudo mount /dev/sda1 /mnt/gentoo
cd /mnt/gentoo

Remember to mount your intended /root partition as /mnt/gentoo. In my case, /dev/sda1

Download and extract Stage3 tarball

Modify the mirrors if necessary, You can find the list of mirrors here,

sudo wget -r -l1 -H -t1 -nd -N -np -A.bz2 -erobots=off

sudo tar xvjpf stage3-*.tar.bz2

Download and extract portage tarball

sudo wget
sudo tar xvjf /mnt/gentoo/portage-latest.tar.bz2 -C /mnt/gentoo/usr

Modify your make.conf to suit your system

sudo nano -w /mnt/gentoo/etc/make.conf

Chrooting into Gentoo

sudo cp -L /etc/resolv.conf /mnt/gentoo/etc/
sudo mount -t proc none /mnt/gentoo/proc
sudo mount -o bind /dev /mnt/gentoo/dev
sudo chroot /mnt/gentoo /bin/bash

The use of sudo is now no longer required!

source /etc/profile
export PS1="(chroot) $PS1"

At this point you have successfully chrooted into your Gentoo environment. Just follow the Gentoo Handbook to complete your install.

Remember to replace step 10.d with the following,

Rebooting the system

sudo umount /mnt/gentoo/dev /mnt/gentoo/proc /mnt/gentoo
sudo reboot
Misc Notes

If you do decide to follow my partition setup, remember to add an entry in the /etc/fstab for the /home partition and enable ext4 in the kernel.

Enjoy Gentoo!
